Operating System Monitoring

Most OS-related metrics (file system, CPU, network) are provided by “platform subagent”, which is loaded automatically by the agent on the startup.

List of available subagents:

  • linux

  • aix

  • hpux

  • winnt (all Windows flavors)

  • sunos (Solaris)

  • darwin (MacOS)

  • freebsd

  • netbsd

  • openbsd

In this section we cover only most common metrics. Detailed list available bellow.

Example

In examples will be shown only DCI configuration with threshold. Generated event processing options can be found in Event processing chapter.

Process monitoring

In this example monitoring of running “mysqld” process will be configured and one threshold will be added: when process count is less then 1 (process is not running).

Create DCI for Process.Count(*) metric to monitor “mysqld” process count.

_images/os-metric-process-monitoring.png

Create threshold. It will be triggered when process count is not equal to 1(process is not running). As prerequisite it was created 2 events.

_images/os-metric-process-monitoring2.png

Events

_images/os-metric-process-monitoring3.png

Threshold 1

As in message of error is used Instance parameter, it should be set in Threshold window.

_images/os-metric-process-monitoring4.png

Disk free space monitoring

In this example monitoring of free space in percents for / disk will be configured and two thresholds will be added: when disk space less then 15% and less then 7%.

Create DCI for FileSystem.FreePerc(*) metric to monitor space on /.

_images/os-metric-disk-free-space-example.png

Create 2 thresholds. One will be triggered when free space is less than 15% and other one when free space is less than 7%. Before threshold creation was created 3 events:

_images/os-metric-disk-free-space-example2.png

Events

_images/os-metric-disk-free-space-example3.png

Threshold 1

_images/os-metric-disk-free-space-example4.png

Threshold 2

As in message of error is used Instance parameter, it should be set in Threshold window.

_images/os-metric-disk-free-space-example5.png

Both

CPU usage

This example will show how to configure monitoring of CPU usage and create event when CPU usage is more than 90% for more than 5 minutes.

Create DCI for System.CPU.LoadAvg metric.

_images/os-metric-cpu-usage-example.png

Create threshold that will create event in case if last 5 values are more than 90 (last 5 minutes CPU usage is more than 90%).

_images/os-metric-cpu-usage-example2.png

Events

_images/os-metric-cpu-usage-example3.png

Threshold

WMI

Windows Management Instrumentation subagent provides interface to Windows Driver Model and thus enables information and notification gathering and further manipulation for monitoring purpose.

Configuration example:

MasterServers = netxms.demo
SubAgent=wmi.nsm

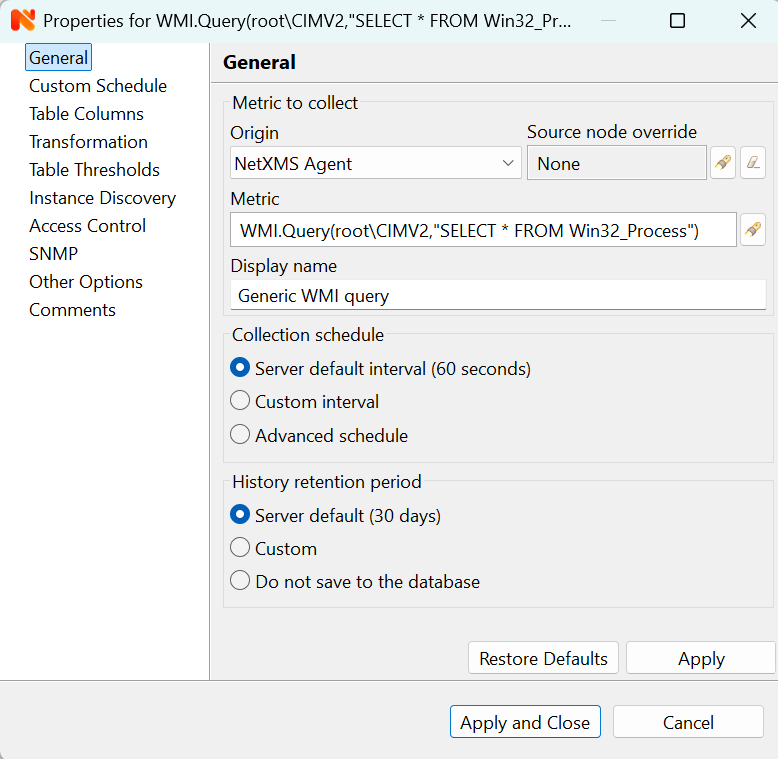

Provides access to WMI data via WMI class queries. In below example, DCI New table … is created with NetXMS Agent as Origin and WMI query as Metric

_images/wmi_example.png

Following parameters are available for this subagent:

Parameter

Description

ACPI.ThermalZone.CurrentTemp

Current temperature in ACPI thermal zone.

ACPI.ThermalZone.CurrentTemp(*)

Current temperature in ACPI thermal zone {instance}. Argument is thermal zone name, one of those returned by list ACPI.ThermalZones (actually InstanceName from WMI class MSAcpi_ThermalZoneTemperature).

Hardware.NetworkAdapter.Availability(*)

Availability. Argument is physical network adapter index, one of those returned by list Hardware.NetworkAdapters or column “INDEX” in table Hardware.NetworkAdapters.

Hardware.NetworkAdapter.Description(*)

Description. Argument is physical network adapter index, one of those returned by list Hardware.NetworkAdapters or column “INDEX” in table Hardware.NetworkAdapters.

Hardware.NetworkAdapter.InterfaceIndex(*)

InterfaceIndex. Argument is physical network adapter index, one of those returned by list Hardware.NetworkAdapters or column “INDEX” in table Hardware.NetworkAdapters.

Hardware.NetworkAdapter.MACAddress(*)

MACAddress. Argument is physical network adapter index, one of those returned by list Hardware.NetworkAdapters or column “INDEX” in table Hardware.NetworkAdapters.

Hardware.NetworkAdapter.Manufacturer(*)

Manufacturer. Argument is physical network adapter index, one of those returned by list Hardware.NetworkAdapters or column “INDEX” in table Hardware.NetworkAdapters.

Hardware.NetworkAdapter.Product(*)

ProductName. Argument is physical network adapter index, one of those returned by list Hardware.NetworkAdapters or column “INDEX” in table Hardware.NetworkAdapters.

Hardware.NetworkAdapter.Speed(*)

Speed. Argument is physical network adapter index, one of those returned by list Hardware.NetworkAdapters or column “INDEX” in table Hardware.NetworkAdapters.

Hardware.NetworkAdapter.Type(*)

AdapterType. Argument is physical network adapter index, one of those returned by list Hardware.NetworkAdapters or column “INDEX” in table Hardware.NetworkAdapters.

System.AntiSpywareProduct.Active

Anti-spyware product active.

System.AntiSpywareProduct.DisplayName

Anti-spyware product display name.

System.AntiSpywareProduct.UpToDate

Anti-spyware product up to date.

System.AntiVirusProduct.Active

Anti-virus product active.

System.AntiVirusProduct.DisplayName

Anti-virus product display name.

System.AntiVirusProduct.UpToDate

Anti-virus product up to date.

System.FirewallProduct.Active

Firewall active.

System.FirewallProduct.DisplayName

Firewall product display name.

System.FirewallProduct.UpToDate

Firewall product up to date.

WMI.Query(*)

Generic WMI query. Arguments are namespace, query, property.

For example:

WMI.Query(root\cimv2, SELECT * FROM Win32_Process WHERE ProcessId=252, Caption)

Following lists are available for this subagent:

  • ACPI.ThermalZones

  • Hardware.NetworkAdapters

  • WMI.Classes(*), argument is WMI namespace (for example root\cimv2). List of available namespaces can also be retrieved using agent list WMI.NameSpaces (output will not contain “root")

  • WMI.NameSpaces

  • WMI.Query(*), arguments are namespace, query, property (for example: WMI.Query(root\cimv2, SELECT * FROM Win32_Process, Caption) - will return all process names)

Following tables are available for this subagent:

  • Hardware.NetworkAdapters

  • WMI.Query(*), arguments are namespace and query and it will return query output with column for each attribute (for example: WMI.Query(root\cimv2, SELECT * FROM Win32_Process) - all processes in the system)

Some of the most commonly used WMI classes are listed below:

Static

  • Computer System - Win32_ComputerSystem

  • Operating System - Win32_OperatingSystem

  • Processor Info - Win32_Processor

  • HDD - Win32_DiskDrive

  • Disk Partitions - Win32_DiskPartition

  • Logical Disks - Win32_LogicalDisk

  • Logical Disk to Partition - Win32_LogicalDiskToPartition

  • Memory - Win32_PhysicalMemory, Win32_PhysicalMemoryArray

  • Network - Win32_NetworkAdapter , Win32_NetworkAdapterConfiguration

Performance Counters

  • Processor Utilization - Win32_PerfRawData_PerfOS_Processor

  • Memory Utilization - Win32_PerfRawData_PerfOS_Memory

  • Network Utilization - Win32_PerfRawData_Tcpip_NetworkInterface

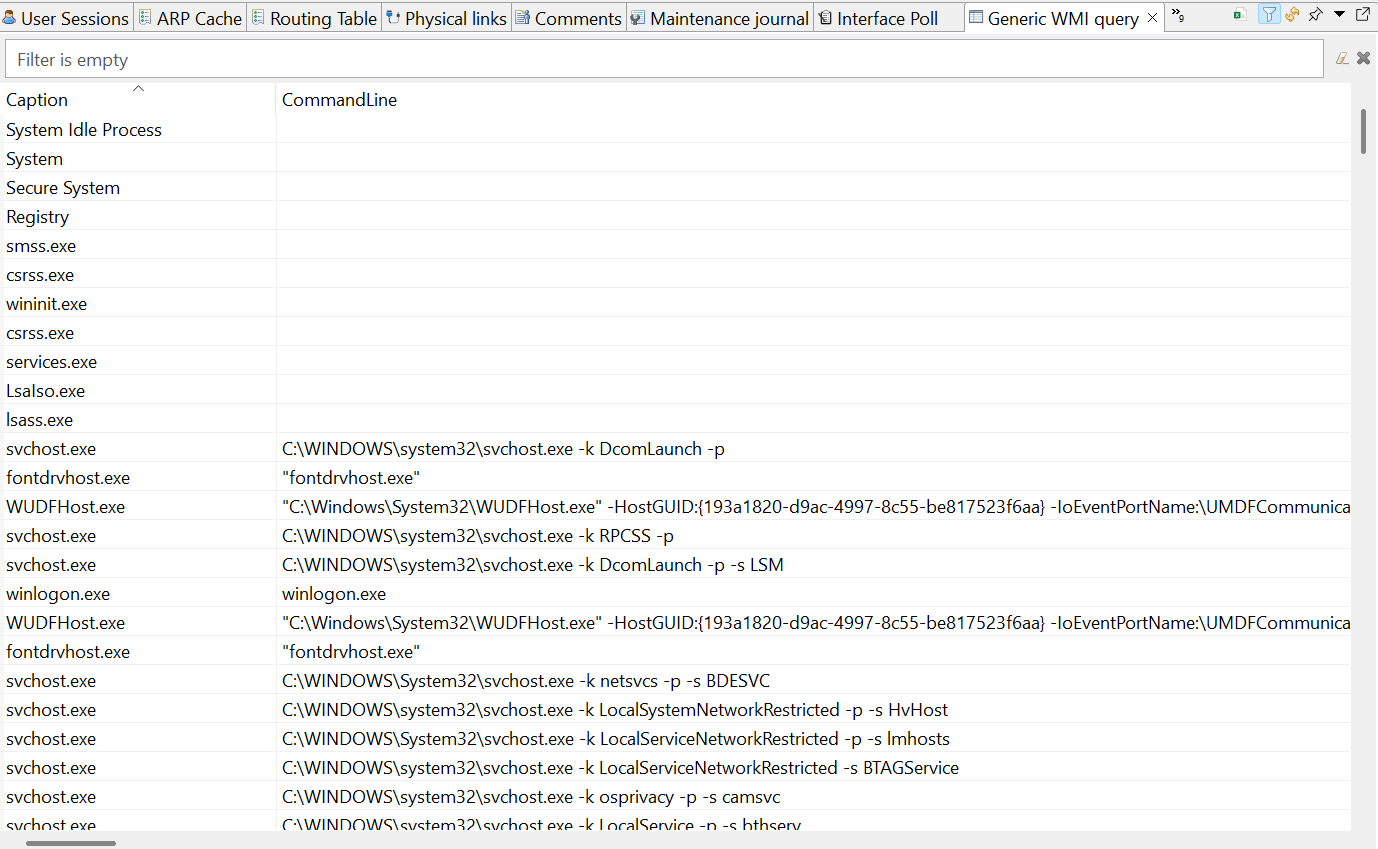

The result is a table with approprite WMI data.

_images/wmi_table.png
